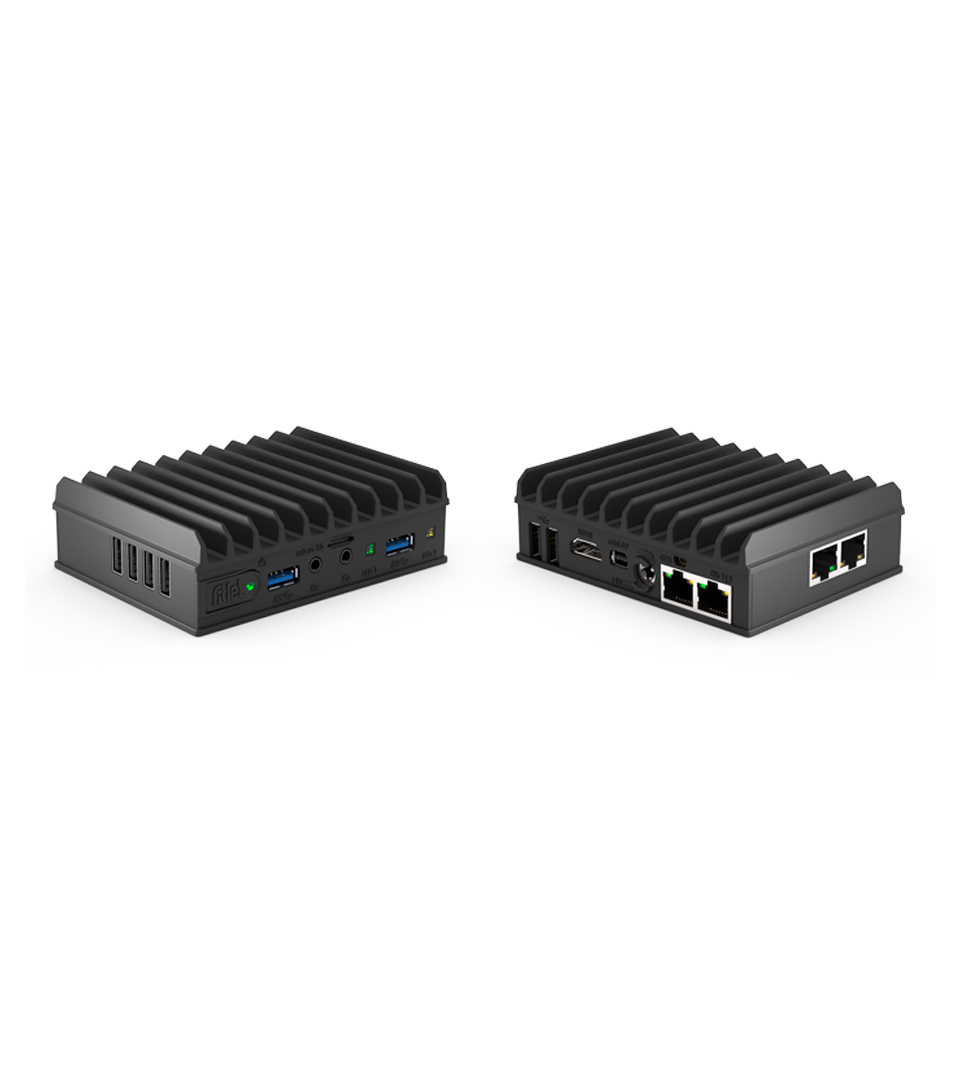

Fitlet2 – Ultra-Compact, Fanless Industrial PC for IoT & Edge Computing

Powerful Performance in a Tiny Form
The Fitlet2 is a rugged, fanless mini PC designed for IoT, industrial automation, and edge computing. Engineered for durability and efficiency, its metal chassis ensures optimal heat dissipation while maintaining a compact footprint of just 112mm x 84mm.

Compact & Modular Design

• Two sizes: 25mm (low-power models) | 34mm (performance models)
• Tool-free access for easy installation of RAM, storage, and expansion cards

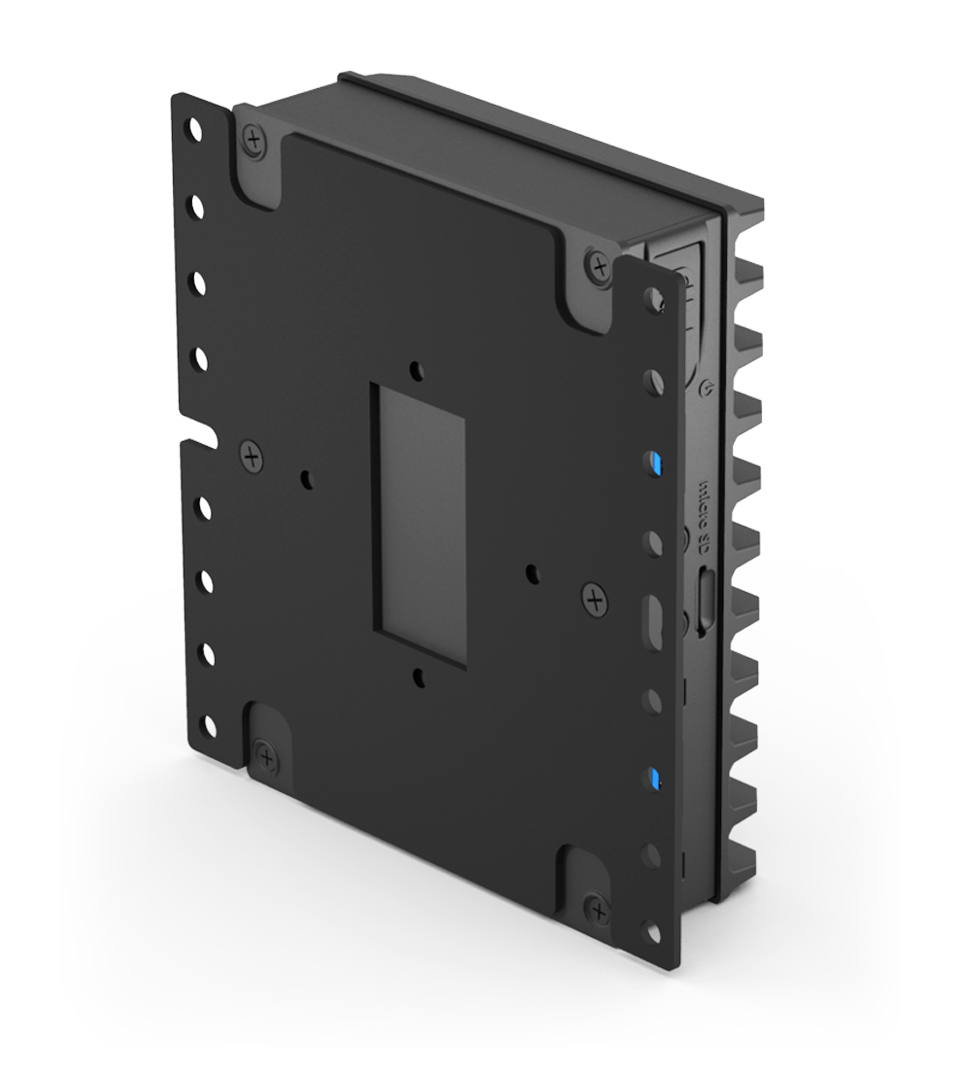

• Mounting options: VESA & DIN-rail compatible for flexible deployment

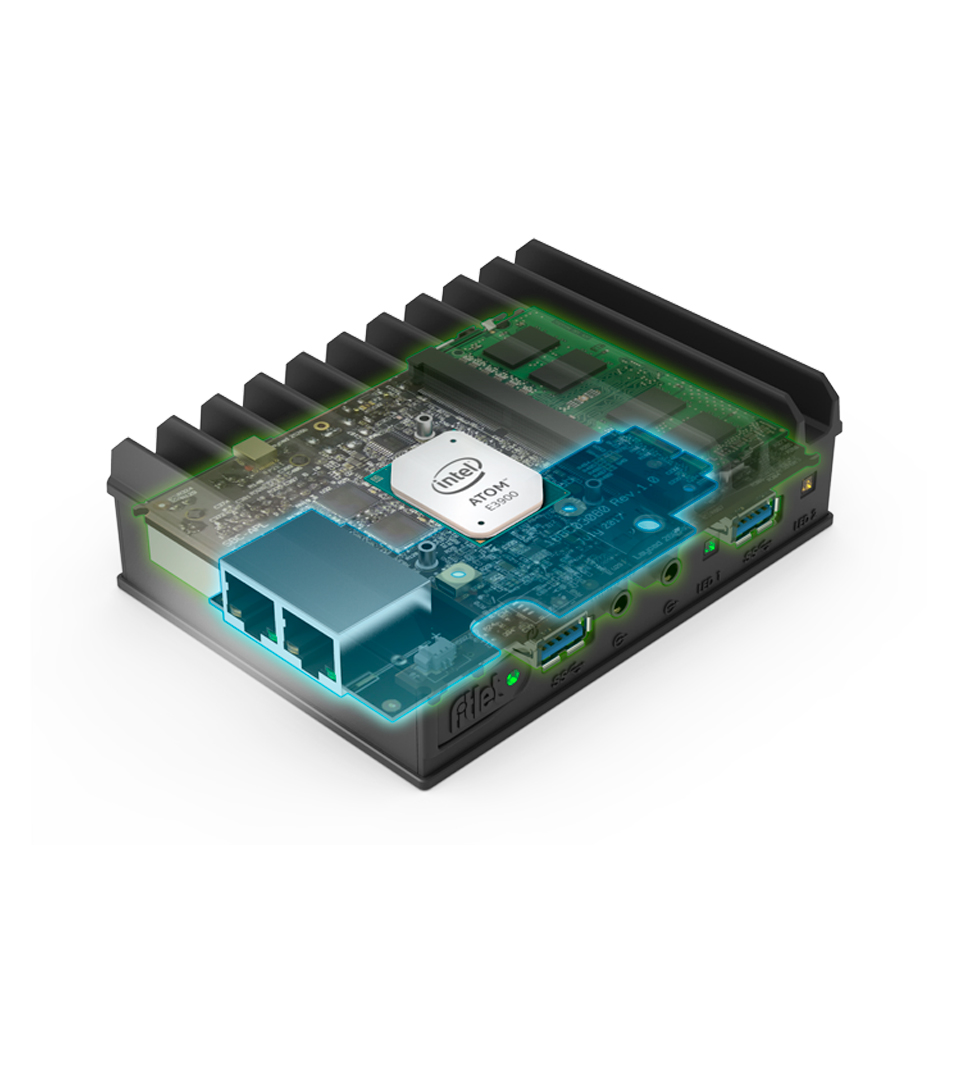

Customizable with FACET Expansion Cards

Fitlet2 adapts to unique IoT requirements with FACET-Cards, enabling:

• Extra Gigabit Ethernet ports (up to 4x LAN)
• Additional USB ports
• Support for 2.5” HDD/SSD
• 4G LTE & WiFi connectivity
• Power-over-Ethernet (PoE PD)

Versatile Storage & High-Speed Networking

• M.2 SATA for fast storage + 2.5” HDD/SSD support (via FACET-Card)
• Dual Intel Gigabit Ethernet (expandable to 4 ports)
• WiFi & 4G LTE modem options for seamless connectivity

Built to Last – Reliable & Long-Term Availability

• Completely fanless, all-metal passive cooling for silent operation
• Wide input voltage (9V – 36V) with twist-lock DC plug
• 5-year unconditional warranty and 15-year availability, ensuring long-term reliability

Perfect for smart cities, industrial automation, kiosks, digital signage, and IoT gateways, the Fitlet2 is a future-proof and energy-efficient solution for demanding applications.

Operating Temperature Range:

• Commercial Temperature Range: 0°C to 45°C.​
• Extended Temperature Range: -20°C to 70°C.​
• Industrial Temperature Range: -40°C to 85°C.
